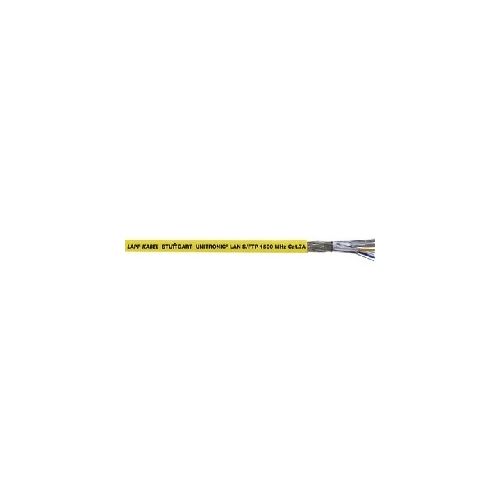

2170199 | UNITRONIC LAN 1500 S/FTP CAT.7A LSZH | Network Cable
Data cable for Category 7A/ class FA - verified up to 1500 MHz, for use in places with a high density of terminal devices
| Complete Electronics Part No. | 2170199 |
|---|---|
| Manufacturers Part No. | 2170199 |
| Category | CAT 7A |
| Cable Jacket: | LSZH - Low Smoke Zero Halogen |
Description
UNITRONIC LAN 1500 S/FTP CAT.7A LSZH
Data cable for Category 7A/ class FA
- Verified up to 1500 MHz
- Mainly used where the terminal density is very high
- Flame-retardant according to IEC 60332-1-2
- Bundle flame test according to IEC 60332-3-24
- Solid bare copper wire AWG22
- Cellular polyolefin core insulation
- Pair screen made of aluminium-lined plastic foil
- Overall screening made of tinned-copper braiding
- Outer sheath: halogen-free, flame-retardant
- Colour: yellow (RAL 1021)
- Minimum bending radius: 4 x Outer Diameter
- Operating temperature: -20°C to +60°C
- Outer sheath made of special TPE
- Cable Outer Diameter: 16.4mm
- Reel Length: 500Metres
