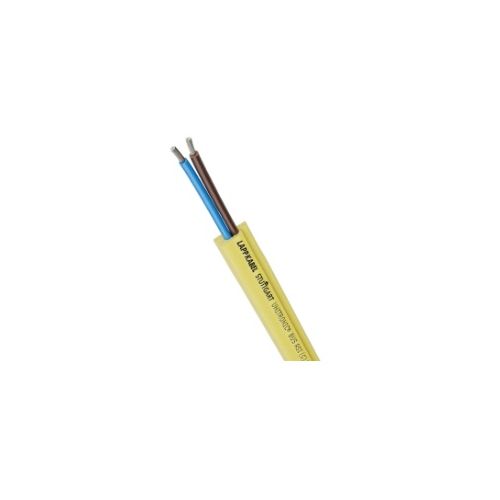

2170228 | UNITRONIC BUS ASI (G) 2X1,5 YE | Lapp Cable
Communication Cable at sensor/actuator level., Number of Cores: 2, Core diameter:1.5mm², Outer sheath material: EPDM (Rubber)
| Complete Electronics Part No. | 2170228 |
|---|---|
| Manufacturers Part No. | 2170228 |
| Number of Conductors: | 2 |
| Conductor Size: | 1.5mm² |
| Cable Jacket: | EPDM |
Description
UNITRONIC BUS ASI (G) 2X1,5 YE
Communication Cable at sensor/actuator level.
- Number of Cores: 2
- Core diameter:1.5mm²
- Outer sheath material: EPDM (Rubber)
- Outer sheath colour: Yellow
- Temperature resistant
- Halogen Free
- Good chemical resistance
- Extra-fine wire, tinned copper strands
- Core insulation: blue and brown
- Outer sheath: yellow (RAL 1023)
- Reel Length: 100M
