2170229 | UNITRONIC BUS ASI (G) 2X1,5 BK | Lapp Cable
Communication Cable at sensor/actuator level., Number of Cores: 2, Core cross section:1.5mm², Outer sheath material: EPDM (Rubber)
| Complete Electronics Part No. | 2170229 |
|---|---|
| Manufacturers Part No. | 2170229 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Cable Jacket: | EPDM |
Description

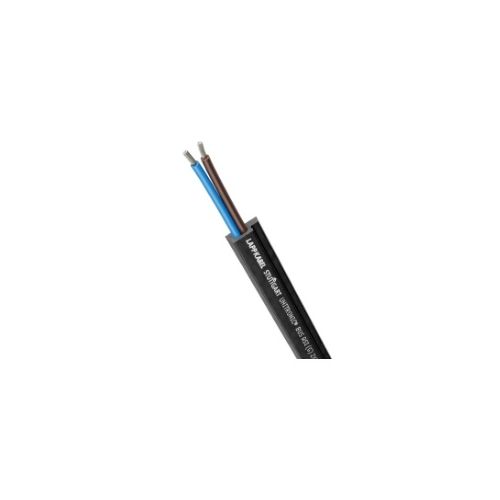

2170229 UNITRONIC® BUS ASI (G) 2X1.5 BK cable
Bus cable; AS-Interface; Cable chain; Flat cable
Product Design
Available in 3 different sheath designs (Rubber, TPE, PVC)
Core Idendification: Colours
Outer sheath: Rubber
Core insulation: Rubber
Shielded: No
Cable sheath colour: Black (RAL9005)
Shape of cable: Flat
Without protective conductor
Number of Cores: 2
Conductor: Tin plated copper
Conductor cross section: 1.5 mm²
Nom. Flat cable width: 10mm
Nom. Flat cable height: 4mm
Weight: 85 kg/km
Max. conductor temperature, fixed installation: -40°C to 85°C
Max. conductor temperature, occasionally moved: -25°C to 85°C
Electrical / Insulation Parameters
Maximum operating voltage 300V
Conductor material: Tin-plated copper
Outer sheath: Rubber
Core insulation: Rubber
Outer sheath colour: Black (RAL 9005)
Core identification: Colours
Core identification: Colours
Product Features
Flame retardant - No
Halogen Free - Yes acc. to VDE 0472-815
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - No
General Information
Available in 3 different sheath designs (Rubber, TPE, PVC)
The “TPE” variant with oil-resistant outer sheath is especially suitable for wet areas
The black cable transmits auxiliary power at 30V DC; the RED suitable for 230 V AC and heavy current
For use in dry and damp areas
The product is heat resistant up to 85° C
Suitable for medium mechanical stress
Articles with the suffix "A" in the article name have UL certification
EAC Certified
Lapp part number: 2170229
Length: 100M
Length: 100M
