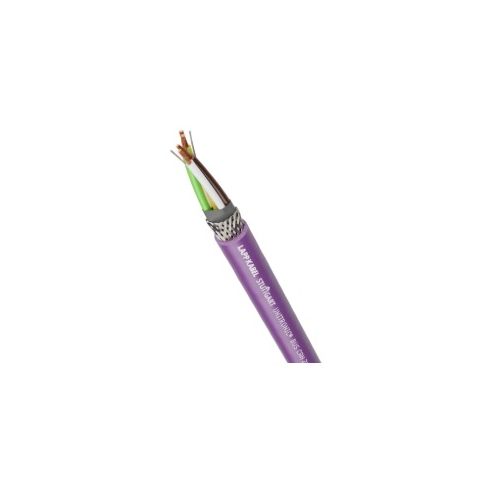

2170261 | UNITRONIC BUS CAN 2X2X0,22 | Lapp Cable
CAN bus cable for fixed installation, Number of cores: 2 x 2, Conductor diameter: 0.22mm², Cable Outer diameter 7.6mm
| Complete Electronics Part No. | 2170261 |
|---|---|
| Manufacturers Part No. | 2170261 |
| Number of Conductors: | 4 |
| Conductor Size: | 0.22mm² |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | PVC |
Description
UNITRONIC BUS CAN 2X2X0,22
CAN bus cable for fixed installation
- Number of cores: 2 x 2
- Conductor diameter: 0.22mm²
- Cable Outer diameter 7.6mm
- Colour-coded in accordance with DIN 47100
- Copper braid
- PVC sheath
- Colour: violet (RAL 4001)
- Temperature Range - Fixed install: -30°C to +80°C
- Temperature Range - Flexing: -5°C to +70°C
- Reel Length: 100M
