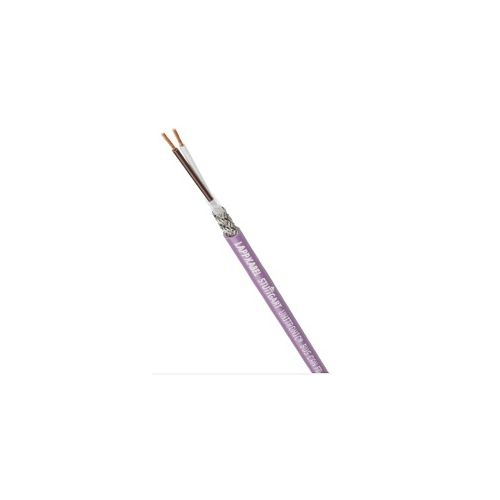

2170263 | UNITRONIC BUS CAN 1X2X0,34 | Lapp Cable
CAN bus cable for fixed installation, Number of cores: 1 x 2, Conductor cross section: 0.34mm², Cable Outer diameter 6.8mm, shielded
| Complete Electronics Part No. | 2170263 |
|---|---|
| Manufacturers Part No. | 2170263 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.34mm² |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | PVC |
Description
2170263 UNITRONIC® BUS CAN cable 1X2X0.34mm²
Flexible data cable with UL and cUL approval
Product Design
Core Idendification: Colours (DIN 47100)
Outer sheath: Polyvinylchloride (PVC)
Core insulation: Polyethylene foam (Foam-Skin PE)
Shielded: Yes
Cable sheath colour: Violet
Shape of cable: Round
Without protective conductor
Number of Cores: 2 (1x2 twisted pairs)
Conductor: Bare copper
Conductor cross section: 0.34 mm²
Nominal outer diameter; 6.8mm
2 cores twisted into pair
Type of overall screen: Tin-plated copper braiding
Weight: 55 kg/km
Max. conductor temperature, fixed installation: -30°C to 80°C
Max. conductor temperature, occasional flexing installation: -5°C to 70°C
Electrical / Insulation Parameters
Maximum operating voltage 250 V (not for power applications)
Test voltage: conductor/conductor 1500 V
Conductor material: Fine-wire stranded bare copper
Outer sheath: Polyvinylchloride(PVC)
Core insulation: Polyethylene foam (Foam-Skin PE)
Core identification: Colours
Pair 1: white and brown
Outer sheath colour: Violet
Product Features
Flame retardant - Yes acc. to. IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - No
For torsional load - No
General Information
Suitable for occasional flexible application in power chains
Suitable for medium mechanical stress
For fieldbus communication in CAN and CAN FD-based networks
For use in dry and damp interiors and in harsh industrial environments
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For fixed installation and occasional movement without tensile strain
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
The product is heat resistant up to 80° C (Fixed Instaliations)
EAC Certified, CE marked, UL listed, cUL listed
Lapp part number: 2170263
Length: 100M
