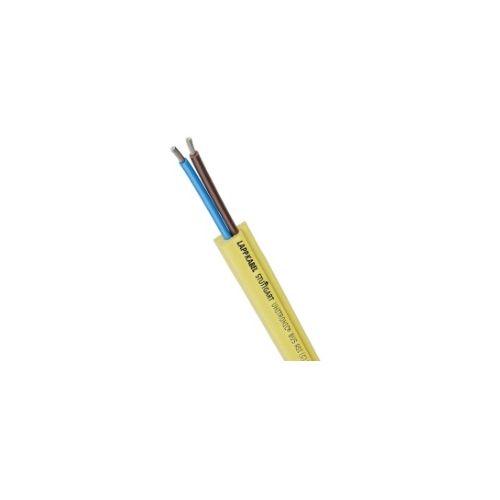

2170317 | UNITRONIC BUS ASI LD FD P YE 2X2,5 | Lapp Cable
Communication Cable at sensor/actuator level., Number of Cores: 2, Core cross section: 2.5mm², Suitable for power chains
| Complete Electronics Part No. | 2170317 |
|---|---|
| Manufacturers Part No. | 2170317 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 2.5mm² |
| Cable Jacket: | PUR |
Description
2170317 UNITRONIC® BUS ASI FD cable 2X2.5 YE
Bus cable; AS-Interface; Cable chain; Flat cable
Product Design
Available in 3 different sheath designs (PUR, FRNC, TPE)
Core Idendification: Colours
Outer sheath: Halogen-free compound
Core insulation:Polyurethane (PUR)
Shielded: No
Cable sheath colour: Yellow (RAL1012)
Shape of cable: Flat
Without protective conductor
Number of Cores: 2
Conductor: Tin plated copper
Conductor cross section: 2.5mm²
Nom. Flat cable width: 10mm
Nom. Flat cable height: 4mm
Weight: 74 kg/km
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature, occasionally moved: -30 °C to 80°C
Max. conductor temperature, Dynamic continuously flexing: -30 °C to 80°C
Electrical / Insulation Parameters
Maximum operating voltage UL/CSA: 300 V - AS-i: 300 V
Test voltage: core/core: 2000 V AC
Conductor material: tin plated copper
Outer sheath: Polyurethane (PUR)
Core insulation: Halogen-free compound
Outer sheath colour: Yellow (RAL 1012)
Core identification: Colours
Core identification: Colours
Product Features
Flame retardant - Yes
Halogen Free - Yes
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Oil Resistant - Yes (DIN EN 60811-2-1)
UV Resistant - No
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - Yes
General Information
Available in 3 different sheath designs (PUR, FRNC, TPE)
Particularly oil-resistant and flame retardant
The “TPE” variant with oil-resistant outer sheath is especially suitable for wet areas
The black cable transmits auxiliary power at 30 V DC; the grey cable transmits auxiliary power at 48 V DC
For use in dry and damp areas
The product is heat resistant up to 80° C
Suitable for medium mechanical stress
Articles with the suffix "A" in the article name have UL certification
EAC Certified, UL recognised
Lapp part number: 2170317
Length: 100M
Length: 100M
