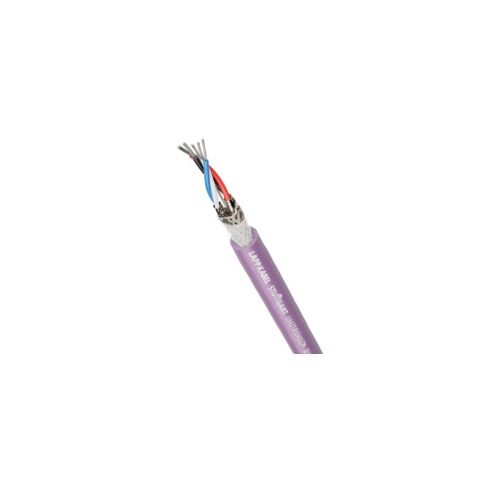

2170342 | UNITRONIC BUS DN THICK Y | Lapp Cable
DeviceNet cable for fixed installation, Number of pairs: 1 x 2 x AWG 18 + 1 x 2 AWG 15, Cable Outer Diameter: 12.2mm, PVC Outer Sheath
| Complete Electronics Part No. | 2170342 |
|---|---|
| Manufacturers Part No. | 2170342 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | AWG 15 & AWG 18 |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | PVC |
Description
2170342 UNITRONIC® BUS DN Thick FD P 1x2xAWG18 + 1x2xAWG15
The cable is intended for fixed installation in dry and damp interiors
Product Design
Core Idendification: Colours (DIN 47100)
Outer sheath: Polyvinylchloride (PVC)
Core insulation: Polyethylene (PE)
Shielded: Yes
Cable sheath colour: Violet (RAL4001)
Shape of cable: Round
Without protective conductor
Number of Cores: 4 (1x2x18AWG + 1x2xAWG15)
Conductor: Tin plated copper
Conductor cross section: AWG18 AWG15
Nominal outer diameter; 12.2mm
2 cores twisted into pairs, 2 pairs arranged to the cable core plastic foil
Type of overall screen: Tin-plated copper braiding
Weight: 192 kg/km
Max. conductor temperature, fixed installation: -25°C to 80°C
Electrical / Insulation Parameters
Maximum operating voltage 300 V (not for power applications)
Test voltage: conductor/conductor 2 KV
Conductor material: Fine-wire stranded bare copper
Outer sheath: Polyvinylchloride(PVC)
Core insulation: Polyethylene foam (Foam-Skin PE)
Core identification: Colours
Pair 1: white and blue
Pair 2: red and black
Outer sheath colour: Violet
Product Features
Flame retardant - Yes acc. to. UL FT4
Halogen Free - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Oil Resistant - according to UL 13 paragraph 40 (60°)
UV Resistant - UL sunlight resistant
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - No
For torsional load - No
General Information
NotSuitable for continual flexing application in power chains
DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches etc
For use in dry and damp interiors and in harsh industrial environments
Ideal protection against electromagnetic interference thanks to copper stranded shielding
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
The product is heat resistant up to 80° C (Fixed Instaliations)
EAC Certified, CE marked, UL listed, cUL listed
Lapp part number: 2170342
Length: 100M
