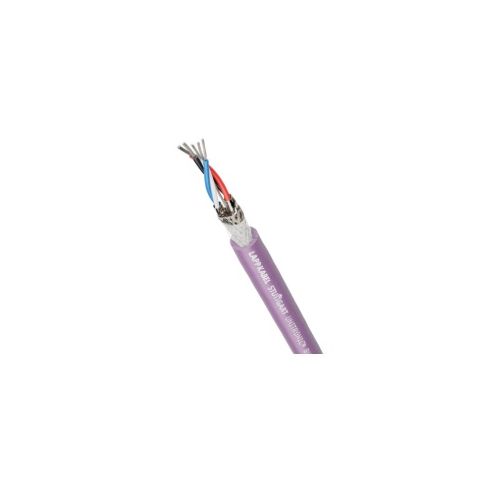

2170344 | UNITRONIC BUS DN THICK FD P | Lapp Cable
Highly flexible and UL/CSA-certified, Number of pairs: 1 x 2 x AWG 18 + 1 x 2 AWG 15, Outer Sheath: PUR, Cable Outer Diameter: 12.2mm
| Complete Electronics Part No. | 2170344 |
|---|---|
| Manufacturers Part No. | 2170344 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | AWG 15 & AWG 18 |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | PUR |
Description
2170344 UNITRONIC® BUS DN Thick FD P 1x2xAWG18 + 1x2xAWG15
The cable is intended for fixed installation in dry and damp interiors
Product Design
Core Idendification: Colours (DIN 47100)
Outer sheath: Polyurethane (PUR)
Core insulation: Polyethylene (PE)
Shielded: Yes
Cable sheath colour: Violet (RAL4001)
Shape of cable: Round
Without protective conductor
Number of Cores: 4 (1x2xAWG18 + 1x2xAWG15)
Conductor: Tin plated copper
Conductor cross section: AWG18 AWG15
Nominal outer diameter; 12.2mm
2 cores twisted into pairs, 2 pairs arranged to the cable core plastic foil
Type of overall screen: Tin-plated copper braiding
Weight: 184 kg/km
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature, occasional flexing installation: -30°C to 70°C
Electrical / Insulation Parameters
Maximum operating voltage 300 V (not for power applications)
Test voltage: conductor/conductor 2 KV
Conductor material: Fine-wire stranded bare copper
Outer sheath: Polyvinylchloride(PVC)
Core insulation: Polyethylene foam (Foam-Skin PE)
Core identification: Colours
Pair 1: white and blue
Pair 2: red and black
Outer sheath colour: Violet
Product Features
Flame retardant - Yes acc. to. UL VW-1
Halogen Free - Yes according to IEC 60754-1
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Oil Resistant - according to UL 13 paragraph 40 (60°)
UV Resistant - EN ISO 4892-2, method A (colour change permitted)
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - Yes
For torsional load - No
General Information
Suitable for continual flexing application in power chains
Suitable for medium mechanical stress
DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches etc
For use in dry and damp interiors and in harsh industrial environments
Ideal protection against electromagnetic interference thanks to copper stranded shielding
Screened foiled twisted pair cable, having a nominal impedance of 120 Ω.
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
The product is heat resistant up to 80° C (Fixed Instaliations)
EAC Certified, CE marked, UL listed, cUL listed, DNV Certified
Lapp part number: 2170344
Length: 100M
