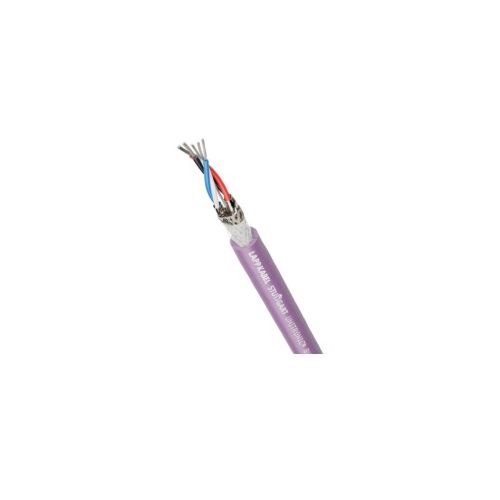

2170347 | UNITRONIC BUS DN THIN FD Y | Lapp Cable
Highly flexible and UL/CSA/DNV-certified, Number of pairs: 1 x 2 x AWG 24 + 1 x 2 AWG 22, Outer Sheath: PVC, Cable Outer Diameter: 6.9mm with drain wire
| Complete Electronics Part No. | 2170347 |
|---|---|
| Manufacturers Part No. | 2170347 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | AWG 24 & AWG 22 |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | PVC |
Description
2170347 UNITRONIC® BUS DN Thin FD P 1x2xAWG24 + 1x 2xAWG22
Field bus cable for DeviceNet applications based on CAN technology
Product Design
Core Idendification: Colours
Outer sheath: Polyvinylchloride (PVC)
Core insulation: Polyethylene (PE)
Shielded: Yes, Aluminium-laminated plastic foil, Tin-plated copper braiding
Wrapping above Screening: Fleece wrapping
Cable sheath colour: Violet (similar to RAL4001)
Shape of cable: Round
Without protective conductor
With drain wire
Number of Cores: 4 (1x2xAWG24 + 1x2xAWG22) Twisted-pairs
Conductor: Tin plated copper
Conductor cross section: AWG24 AWG22
Nominal outer diameter; 6.9mm
2 cores twisted into pairs, 2 pairs arranged to the cable core
Type of overall screen: Tin-plated copper braiding
Weight: 70 kg/km
Max. conductor temperature, fixed installation: -10°C to 80°C
Max. conductor temperature, continous flexing installation: -10°C to 60°C
Electrical / Insulation Parameters
Maximum operating voltage 300 V (not for power applications)
Test voltage: 2kV
Conductor material: tin plated copper
Outer sheath: Polyvinylchloride(PVC)
Core insulation: Polyethylene foam (PE)
Core identification: Colours
Data pair colours: White and blue
Power pair colours: Red and black
Outer sheath colour: Violet (similar to RAL4001)
Product Features
Flame retardant - Yes acc. to. UL FT4
Halogen Free - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Oil Resistant - Yes (UL 13 paragraph 40 (60°))
UV Resistant - Yes (UL sunlight resistant)
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - Yes
For torsional load - No
General Information
Suitable for continual flexing application in power chains
Suitable for medium mechanical stress
DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches etc
For use in dry and damp interiors and in harsh industrial environments
Ideal protection against electromagnetic interference thanks to copper stranded shielding
Screened foiled twisted pair cable, having a nominal impedance of 120 Ω.
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
The product is heat resistant up to 80° C (Fixed Instaliations)
EAC Certified, CE marked, UL listed, cUL listed, DNV Certified
Lapp part number: 2170347
Length: 100M
