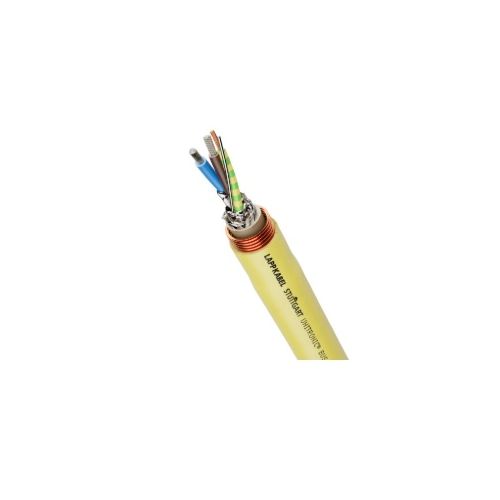

2170351 | UNITRONIC BUS FF 3 ARM (YE) | Lapp Cable
FOUNDATION Fieldbus is used in intrinsically safe areas, 3-core, armoured (YE), With drain wire, Peak Voltage: 300 V, UL-verified, CSA-approval
| Complete Electronics Part No. | 2170351 |
|---|---|
| Manufacturers Part No. | 2170351 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 1.0mm² |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | UV Resistant |
Description
2170353 UNITRONIC® BUS FF 3 ARM. 1x2x1.1 + 1x1.1
Bus cable; FOUNDATION Fieldbus; Fixed Installation
Product Design
Core Idendification: Colours
Outer sheath: Polyvinylchloride (PVC)
Shielded: Yes
Cable sheath colour: Yellow
Shape of cable: Round
Without protective conductor
Screened power pair (aluminium laminated foil)
With drain wire
Number of Cores: 3
Conductor: Bare copper
Conductor cross section: 1.1 mm²
Nominal outer diameter; 12.3mm
Armouring type: Corrugated copper sheath
Screened power pair, blue and brown
LIY wire Green/Yellow
Weight: 182 kg/km
Max. conductor temperature, fixed installation: -25°C to 80°C
Electrical / Insulation Parameters
Maximum operating voltage 300 V (not for power applications)
Test voltage: 1.5 KV
Conductor material: bare copper
Outer sheath: Polyvinylchloride (PVC)
Core identification: Colours
Outer sheath colour: Yellow
Screened power pair, blue and brown
LIY wire Green/Yellow
With drain wire
Product Features
Flame retardant - Yes UL FT4
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - Yes acc. to UL 1581 paragraph 480 (60°C)
UV Resistant - Yes, acc. to UL sunlight resistant
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to aluminium laminated foil
The product is heat resistant up to 80°C (Fixed Instaliations)
EAC Certified, CE marked, UL Listed, cUL listed
Lapp part number: 2170353
Length: 100M
Length: 100M
