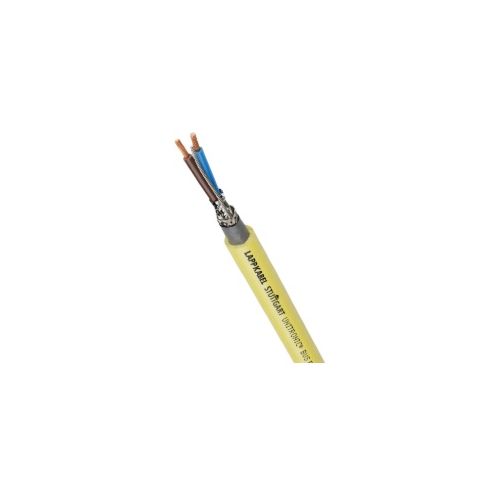

2170352 | UNITRONIC BUS FF 2 | Lapp Cable
FOUNDATION Fieldbus is used in intrinsically safe areas, 2-core, armoured, stranded, tinned copper drain wire, approx. 0.5 mm2 Peak Voltage: 300 V
| Complete Electronics Part No. | 2170352 |
|---|---|
| Manufacturers Part No. | 2170352 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.0mm² |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | UV Resistant |
Description
2170352 UNITRONIC® BUS FF 2, 1x2x1.1mm²
FOUNDATION Fieldbus cable for use in Process Automation
Product Design
Core Idendification: Colours
Outer sheath: Polyvinylchloride (PVC)
Core insulation: Cross-linked Polyethylene (PE)
Shielded: Yes
Cable sheath colour: Yellow
Shape of cable: Round
Without protective conductor
With stranded, tinned copper drain wire
Number of Cores: 2x twisted (1.1mm²) with plastic-laminated aluminium foil
Conductor: Bare copper
Conductor cross section: 1.1mm²)
Nominal outer diameter; 7.9mm
2 cores twisted
Type of overall screen: Tin-plated copper braiding (coverage approx. 85%)
Weight: 82 kg/km
Max. conductor temperature, fixed installation: -40°C to 105°C
Electrical / Insulation Parameters
Maximum operating voltage 300 V (not for power applications)
Test voltage: conductor/conductor 1.5 KV
Conductor material: Stranded bare copper
Outer sheath: Polyurethane(PUR)
Core insulation: Polyethylene (PE)
Inner Jacket material: Thermoplastic copolymer (FRNC)
Core identification: Colours
Outer sheath colour::Yellow
Product Features
Flame retardant - Yes acc. to UL FT4
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - No
For torsional load - No
General Information
Ideal protection against electromagnetic interference thanks to copper stranded shielding
The product is heat resistant up to 105° C (Fixed Instaliations)
EAC Certified, CE marked, UL Listed, cUL listed
Lapp part number: 2170352
Length: 100M
