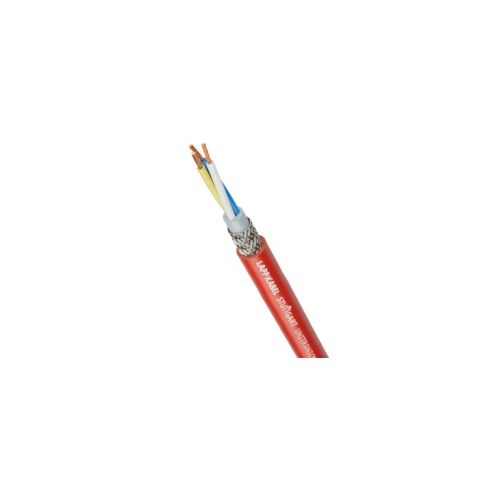

2170360 | UNITRONIC BUS CC 3X1XAWG20 | Lapp Cable
For continuous flexing applications, Number of cores: 3 x 1, AWG 20, Cable outer diameter 8.5mm, can be used as a trailing cable, halogen free and flame retardant
| Complete Electronics Part No. | 2170360 |
|---|---|
| Manufacturers Part No. | 2170360 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | AWG 20 |
| Shielding: | Shielded / Screened |
| Cable Jacket: | UV Resistant |
Description
2170360 UNITRONIC® BUS CC FRNC 3x1xAWG20
A highly flexible data cable for CC- Link® networks
Product Design
Core Idendification: Colours
Outer sheath: Polyurethane (PUR)
Core insulation: Polyethylene (PE)
Shielded: Yes
Cable sheath colour: Red (RAL3000)
Shape of cable: Round
Without protective conductor
Number of Cores: 3 x twisted 20AWG) with plastic tape wrapping
Conductor: Bare copper
Conductor cross section: AWG20
Nominal outer diameter; 7.7mm
3 cores twisted
Type of overall screen: Tin-plated copper braiding (coverage approx. 90%)
Weight: 77 kg/km
Max. conductor temperature, fixed installation: -40°C to 70°C
Electrical / Insulation Parameters
Maximum operating voltage 300 V (not for power applications)
Test voltage: conductor/conductor 2 KV
Conductor material: Stranded bare copper
Outer sheath:Polyvinylchloride (PVC)
Core insulation: Polyethylene (PE)
Core identification: Colours
Outer sheath colour: Red (RAL 3000)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- Yes
Oil Resistant - Yes
UV Resistant - No
Weather Resistant -
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - Yes
For torsional load - No
General Information
Suitable for continual flexing application in power chains
For highly flexible applications (power chains, moving machine parts)
CC-Link® (Control & Communication Link)
Can be used as a trailing cable
Ideal protection against electromagnetic interference thanks to copper stranded shielding
The product is heat resistant up to 70° C (Fixed Instaliations)
EAC Certified, CE marked, UL Recognised, cUL listed
Lapp part number: 2170360
Length: 100M
