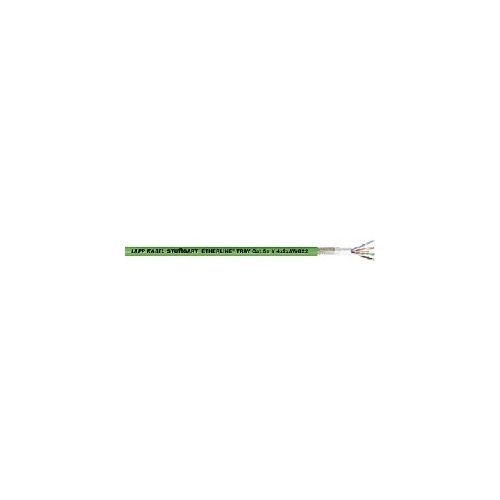

2170450 | ETHERLINE TRAY CAT.5E Y 4X22AWG/4PR | Network Cable
Industrial Ethernet cable for riser and general purpose installations, CMR, PLTC and CMG- approval acc. to UL and CSA, for protected use on cable trays
| Complete Electronics Part No. | 2170450 |
|---|---|
| Manufacturers Part No. | 2170450 |
| Category | CAT 5e |
| Cable Jacket: | PVC |
Description
ETHERLINE TRAY CAT.5E Y 4X22AWG/4PR
Cable for riser and general purpose installations
- PLTC (power limited tray cable) for protected use on cable trays
- High-quality, double screening
- Flame-retardant according to CSA FT4
- UL Vertical-Tray Flame Test
- Oil-resistant according to UL OIL RES I
- Stranded tinned 7-wire conductor
- Core insulation: Based on Polyolefin
- Colour-coded in accordance with EIA/TIA 568A and B
- Copper braid and foil screening as overall screening
- TP structure
- PVC outer sheath
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
- Number of pairs and conductor size: 4x2xAWG22/7
- Cable Outer Diameter: 9.6mm
- Reel Length: 305Metres
