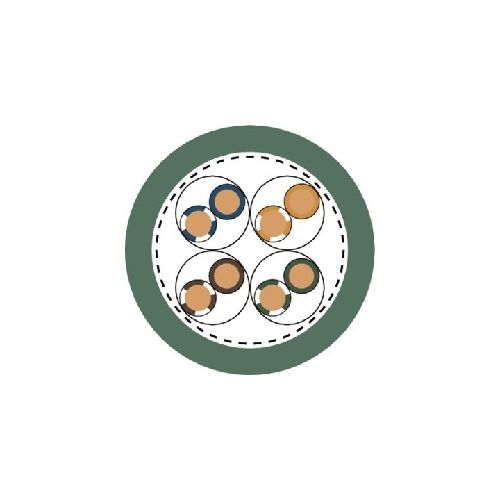

2170464 | ETHERLINE CAT. 6A Y | Network Cable
Ethernet cable Category 6A, Class EA for fixed installation
| Complete Electronics Part No. | 2170464 |
|---|---|
| Manufacturers Part No. | 2170464 |
| Category | CAT 6A |
| Cable Jacket: | PVC |
Description
ETHERLINE CAT. 6A Y
Ethernet cable for Category 6A / class EA
- Verified up to 500 MHz
- For PROFINET applications with 4 pairs
- PVC outer sheath
- High-quality, double screening
- Peak operating voltage: (not for power applications) 125 V
- Characteristic impedance: 100 ohm at 1 - 100 MHz
- Solid bare copper wire AWG22
- Core insulation made of polyethylene (PE)
- Colour: green (based on RAL 6018)
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
- For Use in harsh industrial environments
- Can be used in dry or damp rooms
- Core Diameter: 1.5mm
- Cable Outer Diameter 8.7mm
- Reel Length: 500Metres
