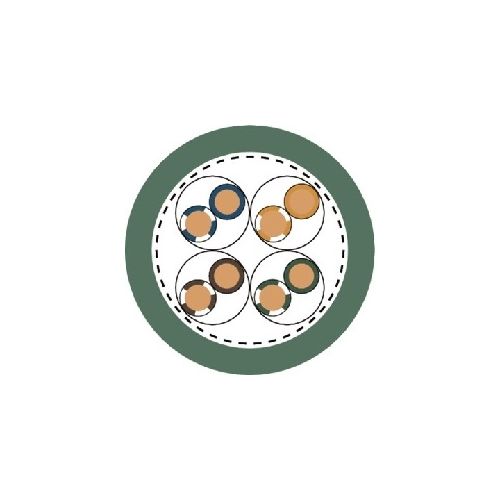

2170476 | ETHERLINE H CAT. 7 H | Network Cable
Industrial Ethernet cable Cat.7 for fixed installation; halogenfree, outer sheath, For PROFINET applications with 4 pairs
| Complete Electronics Part No. | 2170476 |
|---|---|
| Manufacturers Part No. | 2170476 |
| Category | CAT 7 |
| Cable Jacket: | LSZH - Low Smoke Zero Halogen |
Description
ETHERLINE H CAT. 7 H
Ethernet cable Category 7 For Fixed Installation
- For PROFINET applications with 4 pairs
- Halogen Free Jacket
- Max. cable lenght for 100 Mbit/s up to 10 Gbit/s is 100 m
- Solid bare copper wire AWG22
- Core insulation made of polyethylene (PE)
- Copper braid as overall screening and pair screening with aluminium compound foil
- Colour: green (based on RAL 6018)
- UV-resistant
- Can be used in dry or damp rooms
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
- For use in harsh industrial environments
- Suitable for EtherCAT and EtherNet/IP applications
- Core Diameter: 1.5mm
- Outer Cable Diaameter: 8.7mm
- Reel Length: 100Metres
