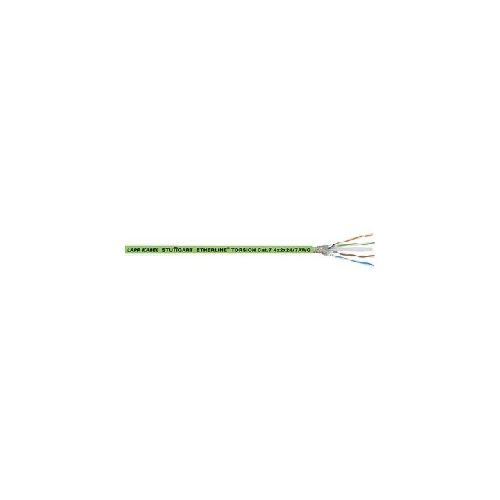

2170481 | ETHERLINE TORSION Cat.7 | Network Cable
Industrial Ethernet cable Cat.7 for torsion stress applications (± 180°C ); 4 pairs, PUR jacket with UL approval, For PROFINET applications with 4 pairs
| Complete Electronics Part No. | 2170481 |
|---|---|
| Manufacturers Part No. | 2170481 |
| Category | CAT 7 |
| Cable Jacket: | PUR |
Description
ETHERLINE TORSION Cat.7
Etherline Torsion Cat 7 Cable for Highly Flexible application
- For Torsion applications (±180°)
- For PROFINET applications with 4 pairs
- Cat.7 qualified for 10Gbit/s
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
- Premium screening against electromagnetic interference
- Can be used in harsh industrial environments
- Max. cable length for 10 Gbit/s is 85 m
- Suitable for EtherCAT and EtherNet/IP applications
- Halogen-free according to IEC 60754-1
- Oil-resistant acc. IEC 60811-2-1
- Suitable for high torsion stress.
- Flame-retardant according IEC 60332-1-2
- Number of Pairs and conductor size: 4x2xAWG24/7
- Outer Cable Diaameter: 9.4mm
- Reel Length: 100Metres
