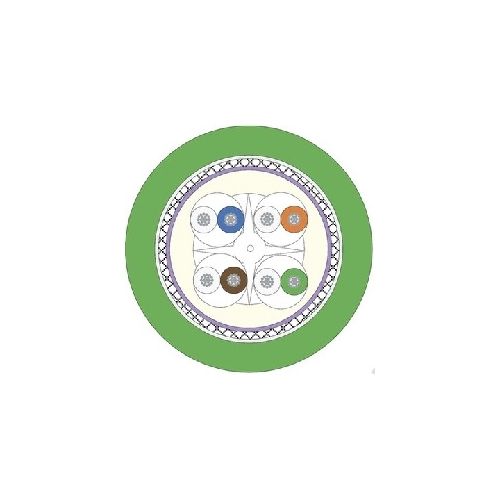

2170488 | ETHERLINE FD P CAT.6 4X2XAWG26 | Network Cable
Industrial Ethernet cable Cat.6 for high flexible use; PUR (UL-approval) outer sheath material
| Complete Electronics Part No. | 2170488 |
|---|---|
| Manufacturers Part No. | 2170488 |
| Category | CAT 6 |
| Cable Jacket: | PUR |
Description
ETHERLINE FD P CAT.6 4X2XAWG26
Ethernet cable Category 6, Class E
- For use in drag chain applications
- Verified up to 250 MHz
- Number pf Pairs and conductor size: 4 x2xAWG26/19
- PP core insulation
- Inner sheath: thermoplastic copolymer (FRNC)
- Braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- PUR outer sheath, halogen-free
- Colour: green (based on RAL 6018)
- Only for patch cable applications (max. 60 m)
- suitable for EtherCAT and EtherNet/IP applications
- Outer sheath is resistant to most oils and hydraulic fluids
- Approvals: UL/CSA type CMX (UL 444)
- Core Diameter: 0.98mm
- Uoter Cable diameter: 7.8mm
- Reel Length: 305Metres
