2170582 | ETHERLINE CAT. 7 FL09YBC11Y 4X2X0,22SN | Network Cable
Industrial Ethernet cable with halogenfree PUR-jacket, tested acc. to ECE-R 118.01, designed acc.to requirements of ISO 6722
| Complete Electronics Part No. | 2170582 |
|---|---|
| Manufacturers Part No. | 2170582 |
| Category | CAT 7 |
| Cable Jacket: | LSZH - Low Smoke Zero Halogen |
Description

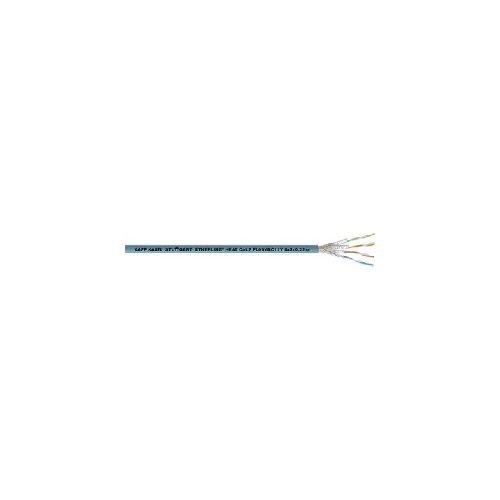

ETHERLINE CAT. 7 FL09YBC11Y 4X2X0,22SN
Etherline Heat 6772 Cat 7 Cable
- For flexible applications (7-wire stranded conductor)
- For fixed, flexible and protected installations inside buses
- Good resistance to oil, petrol, acids and alkalis
- Abrasion and cut-resistant
- Halogen-free according to VDE 0472-815
- Flame retardant acc. to ISO 6722-1
- UV-resistant
- Suitable for outdoor use
- Core insulation: Based on Polyolefin
- Colour-coded in accordance with EIA/TIA 568A and B
- Copper braid as overall screening and pair screening with aluminium compound foil
- Sheath Colour: Yellow (RAL 1003)
- Core Diameter 1.3mm
- Cable Outer Diameter: 8.1mm
- Reel Length: 500Metres
