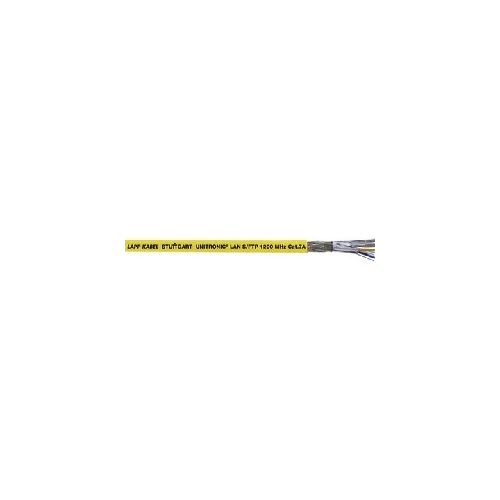

2170615 | UNITRONIC LAN 1200 S/FTP CAT.7A LSZH | Network Cable
Ethernet cable for Category 7A/ class FA - verified up to 1200 MHz, external, halogen-free outer sheath and quality shielding underneath
| Complete Electronics Part No. | 2170615 |
|---|---|
| Manufacturers Part No. | 2170615 |
| Category | CAT 7A |
| Cable Jacket: | LSZH - Low Smoke Zero Halogen |
Description
UNITRONIC LAN 1200 S/FTP CAT.7A LSZH
Unitronic LAN CAT 7 Class FA Cable
- Verified up to 1200 MHz
- Suitable for use in structured building wiring networks
- Flame-retardant according to IEC 60332-1-2
- Bundle flame test according to IEC 60332-3-24
- Used where the terminal density is very high
- Solid bare copper wire AWG22
- Cellular polyolefin core insulation
- Pair screen made of aluminium-lined plastic foil
- Overall screening made of tinned-copper braiding
- Outer sheath: halogen-free, flame-retardant
- Colour: yellow (RAL 1021)
- Characteristic impedance: 100 Ohm ± 15%
- Outer sheath made of special TPE
- Cable Outer Diameter: 8.1mm
- Reel Length: 100Metres
