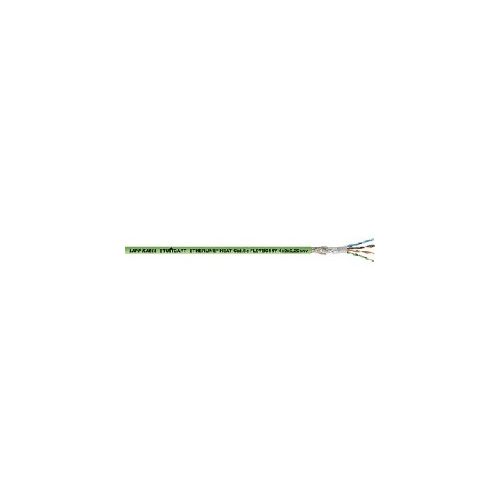

2170850 | ETHERLINE HEAT CAT. 5E FL9YBC11Y 4X2X0,22SN | Network Cable
Industrial Ethernet cable with halogenfree PUR-jacket, tested acc. to ECE-R 118.01, designed acc.to requirements of ISO 6722, Cat.5e
| Complete Electronics Part No. | 2170850 |
|---|---|
| Manufacturers Part No. | 2170850 |
| Category | CAT 5e |
| Cable Jacket: | PUR |
Description
ETHERLINE CAT. 5E FL9YBC11Y 4X2X0,22SN
ETHERLINE HEAT 6722 Halogen free PUR-jacket
- For flexible applications (7-wire stranded conductor)
- For fixed, flexible and protected installations inside buses
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
- Halogen-free according to VDE 0472-815
- Good chemical resistance
- Flame retardant acc. to ISO 6722-1
- Temperature class B on the basis of ISO 6722-1
- Core insulation: Based on Polyolefin
- Colour-coded in accordance with EIA/TIA 568A and B
- Copper braid and foil screening as overall screening
- Outer sheath: PUR compound, halogen-free
- Outer sheath colour: green (RAL 6018)
- Core Diameter: 1.17mm
- Cable Outer Diameter: 7.7mm
- Reel Length: 500Metres
