2170888 | ETHERLINE TORSION P CAT5 AWM 2X2XAWG22 | Network Cable
Industrial Ethernet cable Cat.5 for torsion stress applications (± 180°);2 pairs, PUR jacket with AWM approval, design 2x2xAWG22/19, for PROFINET
| Complete Electronics Part No. | 2170888 |
|---|---|
| Manufacturers Part No. | 2170888 |
| Category | CAT 5 |
| Cable Jacket: | PUR |
Description

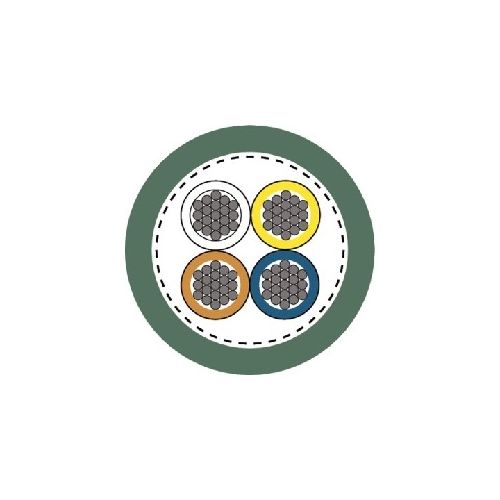

ETHERLINE TORSION P CAT5 AWM 2X2XAWG22
Cat.5 Cable for torsion stress applications (± 180°)
- Approvals: UL AWM Style 21161 (80°C )
- Conductor tinned copper, fine-wire stranded (19 x 0.15 mm)
- Core identification code: white, yellow, blue, orange
- Wrapping: non-woven tape (overlapping)
- Screening: braid of copper wire,
- Outer sheath PUR, green
- Minimum bending radius: 5 x cable diameter
- Torsional stress 1 million cycles at ±180 °C/meter
- Not suitable for festoon-applications
- Flame retardant acc. to IEC 60332-1-2
- For PROFINET applications
- Core Diameter 1.5mm
- Cable Outer Diameter: 6.5mm
- Max. cable length for 100 Mbit/s is 55 m
- Reel Length: 100Metres
