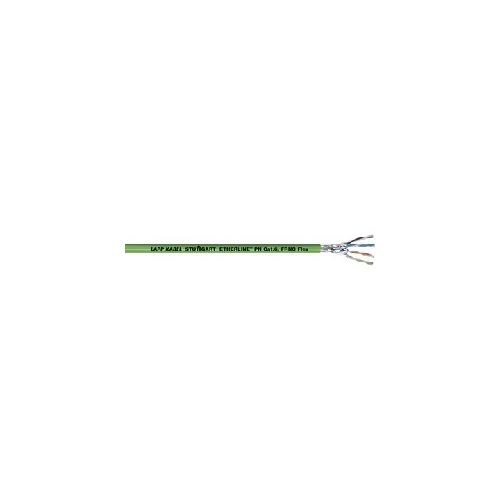

2170931 | ETHERLINE PN CAT.6A FRNC FLEX 4X2X23/7 | Network Cable
Industrial Ethernet cable Cat.6A for flexible use, 4 pairs, FRNC outer sheath with UL-approval, qualified for 10Gbit/s
| Complete Electronics Part No. | 2170931 |
|---|---|
| Manufacturers Part No. | 2170931 |
| Category | CAT 6A |
| Cable Jacket: | FRNC - Fire Retadant Non Corrosive |
Description
ETHERLINE PN CAT.6A FRNC FLEX 4X2X23/7
Ethernet cable for Category 6A, Flexible
- For flexible applications
- For PROFINET applications with 4 pairs
- FRNC Outer Sheath
- High-quality, double screening
- Peak operating voltage: (not for power applications) 125 V
- Characteristic impedance: 100 ohm at 1 - 100 MHz
- Solid bare copper wire AWG22
- Core insulation made of polyethylene (PE)
- Colour: green (based on RAL 6018)
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
- For Use in harsh industrial environments
- Can be used in dry or damp rooms
- Core Diameter: 1.52mm
- Cable Outer Diameter 8.8mm
- Reel Length: 100Metres
