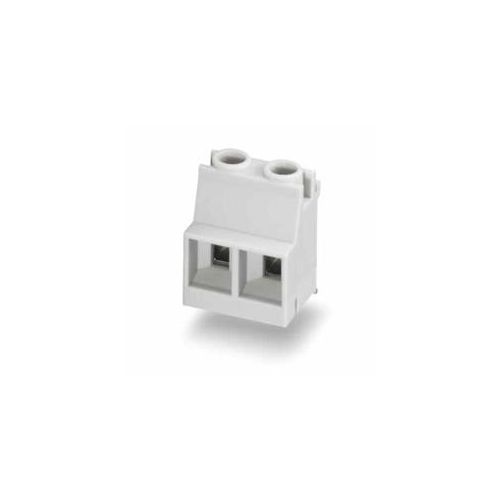

2199773 | MKDSO 2,5 HV/ 2R-7,5 KMGY | PCB terminal block
PCB terminal block, For ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 630V, Pitch: 7.5 mm, Number of positions: 2
| Complete Electronics Part No. | 2199773 |
|---|---|
| Manufacturers Part No. | 2199773 |
| Pitch | 7.5mm |
| Terminal Block Type: | PCB |
| Number Of Positions: | 2 |
Description
MKDSO 2,5 HV/ 2R-7,5 KMGY
PCB terminal block
- For ME MAX electronics housing
- Nominal current: 24 A
- Nominal voltage: 630V
- Pitch: 7.5 mm
- Number of positions: 2
- Connection method: Screw connection
- With tension sleeve
- Mounting: Wave soldering
- Colour: Light Grey
- with lateral pin exit
- Material:Polyamide
- Weight per Piece (excluding packing) 4.890 g
- Country of origin: Germany
