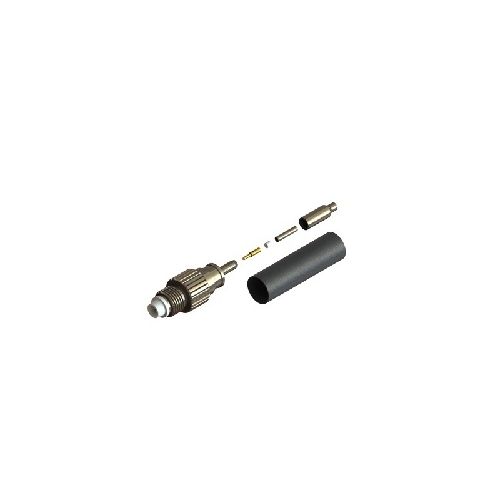

22-045-B3-AA | 22045B3AA | FME IP68 Crimp / Crimp Jack
FME straight full crimp Jack. Internaled Sealed and Adhesive Heatshrink to Achive IP68 Un-Mated Suitable for use with RG178
| Complete Electronics Part No. | 22045B3AA |
|---|---|
| Manufacturers Part No. | 22-045-B3-AA |
| Male/Female: | Male |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: 5GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention 100N
- Weight: 9.02g
- Mating Force: 23Ncn
- Uncoupling Force: 23Ncn
- Recommended Coupling Nut Torque: 60Ncm Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP68
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Bullet Contact: Brass
- Centre Plating Contact: Gold
- Outer Contact Plating Nickel
- Pack Size 1
