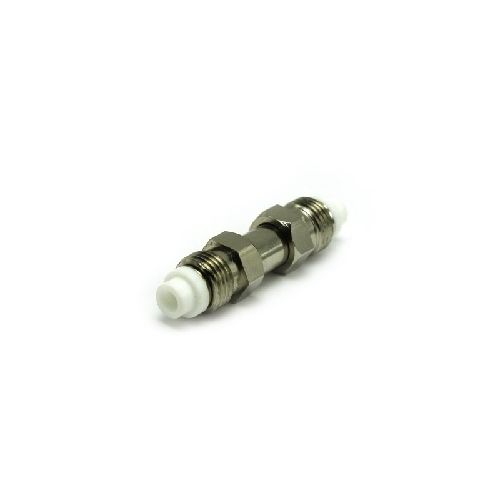

22-500-A3 | 22500A3 | FME Jack to Jack Adaptor
FME straight Jack to Jack Adaptor. With gold plated contact and nickel plated body.
| Complete Electronics Part No. | 22500A3 |
|---|---|
| Manufacturers Part No. | 22-500-A3 |
| Male/Female: | Male |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: 2GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention 100N
- Weight: 5.72g
- Mating Force: 23Ncn
- Uncoupling Force: 23Ncn
- Recommended Coupling Nut Torque: 60Ncm Max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP54
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating Nickel
- Pack Size 1
