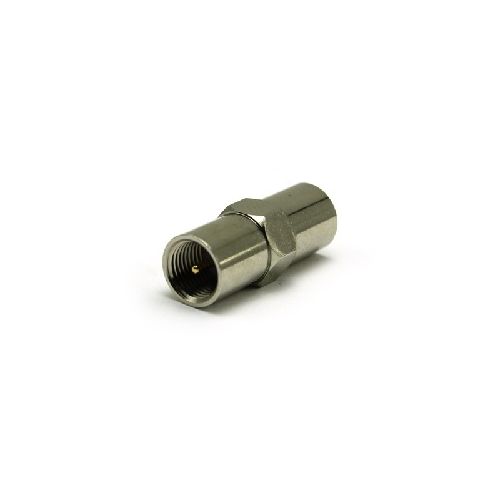

22-514-A0 | 22514A0 | FME Plug to Plug Adaptor

FME straight Plug to Plug Adaptor. With gold plated contact and nickel plated body.
More Information
Complete Electronics Part No. 22514A0
Manufacturers Part No. 22-514-A0
Male/Female: Male
Impedance 50 Ohm
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: 2GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention 100N min
  • Weight: 8.58g
  • Mating Force: 23Ncn
  • Uncoupling Force: 23Ncn
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP54

Materials

  • Centre Contact: Brass
  • Outer Contact:  Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating Nickel
  • Pack Size 1
