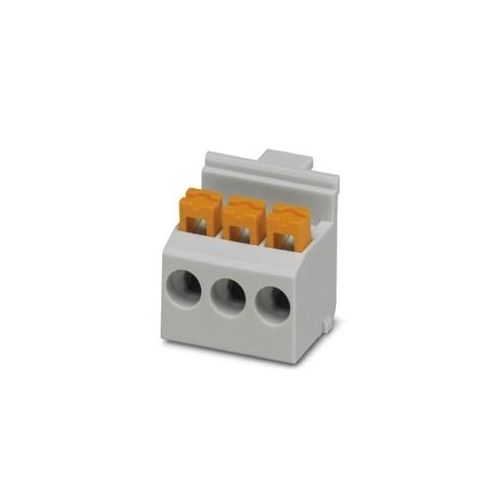

2200318 | FKDSO 2,5/ 3-L KMGY | PCB terminal block

PCB terminal block, For ME/ME MAX electronics housing, Nominal current: 22 A, Nominal voltage: 250V, Pitch: 5 mm, Number of positions: 3
More Information
Complete Electronics Part No. 2200318
Manufacturers Part No. 2200318
Pitch 5mm
Terminal Block Type: PCB
Number Of Positions 3


PCB terminal block

  • For ME/ME MAX electronics housing
  • Nominal current: 22 A
  • Nominal voltage: 250V
  • Pitch: 5 mm
  • Number of positions: 3
  • Connection method: Push-in spring connection
  • Mounting: Wave soldering
  • Colour: Light Grey
  • Material: Polyamide
  • with lateral pin exit
  • Length: 25.9 mm
  • Weight per Piece (excluding packing) 3.810 g
  • Country of origin: Poland
