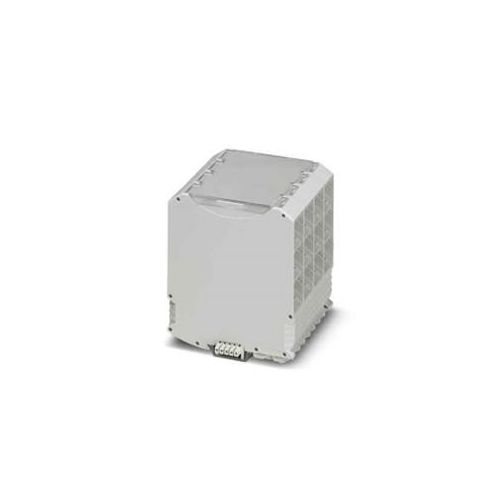

2200532 | ME MAX 90 G 3-3 KMGY | Complete housing without vents
2200532 | ME MAX 90 G 3-3 KMGY | Complete housing without vents
Complete housing without vents, Cross connection: DIN rail bus connector, colour: light grey, width: 90mm, length: 99 mm
More Information
Complete Electronics Part No.
2200532
Manufacturers Part No.
2200532
Material / Type
Polyamide
Enclosure Shape:
Rectangular
Enclosure Length:
51mm to 100mm
Enclosure Width:
51mm to 100mm
Enclosure Height:
101mm to 150mm
Housing Selection:
ME Series Housings
Description
ME MAX 90 G 3-3 KMGY
Complete housing without vents
Cross connection: DIN rail bus connector
colour: light grey
width: 90mm
length: 99 mm
height: 114.5 mm
number of positions cross connector: 5
Housing material: Polyamide
Operating Temperature: -40 °C ... 105 °C (depending on power dissipation)
Weight per Piece: 108.330g
Country of origin: Germany
