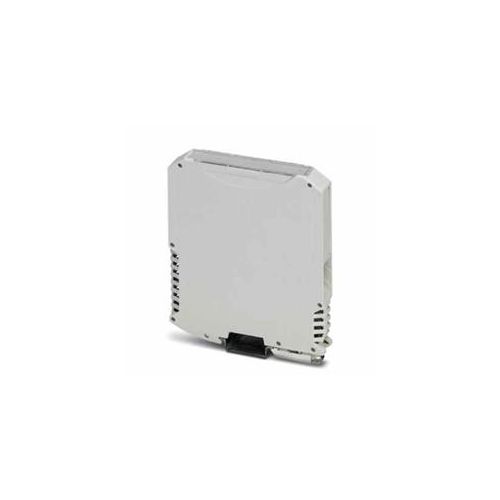

2201314 | ME MAX 17,5 U-U1 KMGY VPE 1 | Complete housing with vents
Complete housing with vents, Cross connection: DIN rail bus connector, colour: light grey, width: 17.5mm, length: 99 mm
| Complete Electronics Part No. | 2201314 |
|---|---|
| Manufacturers Part No. | 2201314 |
| Material / Type | Polyamide |
| Enclosure Shape: | Rectangular |
| Enclosure Length: | 51mm to 100mm |
| Enclosure Width: | up to 50mm |
| Enclosure Height: | 101mm to 150mm |
| Housing Selection: | ME Series Housings |
Description
ME MAX 17,5 U-U1 KMGY VPE 1
Complete housing with vents
- Cross connection: DIN rail bus connector
- colour: light grey
- width: 17.5mm
- length: 99 mm
- height: 114.5 mm
- number of positions cross connector: 5
- Housing material: Polyamide
- Operating Temperature: -40 °C ... 105 °C (depending on power dissipation)
- Weight per Piece: 64.000g
- Country of origin: Germany
