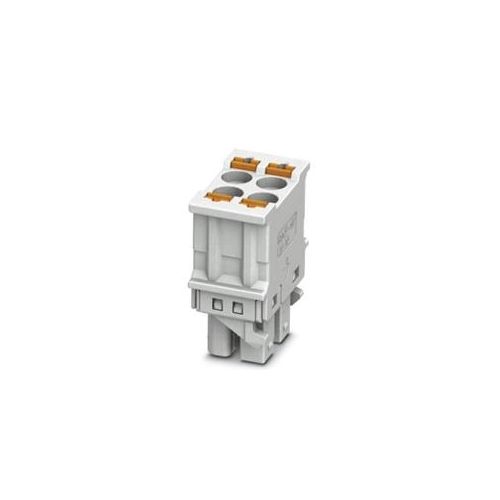

2201781 | HSCP-SP 2,5-1UTT-7035 | Printed-circuit board connector
ME-IO product range, Printed-circuit board connector, rated voltage: 300 V, number of positions: 4, pitch: 5 mm
| Complete Electronics Part No. | 2201781 |
|---|---|
| Manufacturers Part No. | 2201781 |
| Material / Type | PCB Connector |
| Enclosure Length: | up to 50mm |
| Enclosure Width: | up to 50mm |
| Housing Selection: | ME Series Housings |
Description
HSCP-SP 2,5-1UTT-7035
Printed-circuit board connector
- ME-IO product range
- nominal current: 8 A
- rated voltage: 300 V
- number of positions: 4
- pitch: 5 mm
- connection method: Push-in technology
- Colour: Light Grey
- contact surface: Tin
- Colour of the spring lever: Orange
- Length: 10.9 mm
- Width: 18.8 mm
- Weight per Piece: 3.640 g
- Country of origin: Germany
