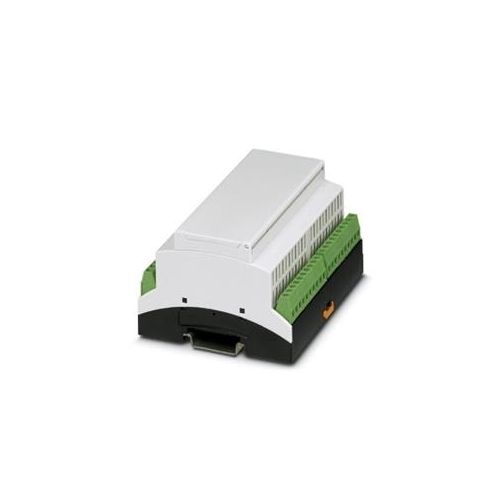

2202525 | BC 107,6 DEV-KIT KMGY | DEV-KIT BC 107,6
DEV-KIT BC 107,6 contains, 1 x BC 107,6 housing, PCB terminal blocks (MKDS)
| Complete Electronics Part No. | 2202525 |
|---|---|
| Manufacturers Part No. | 2202525 |
| Material / Type | Polycarbonate |
| Enclosure Width: | 101mm to 150mm |
| Enclosure Height: | 51 to 100mm |
| Housing Selection: | DEV KIT |
Description
2202525 | BC 107,6 DEV-KIT KMGY
DEV-KIT BC 107,6 contains
- 1 x BC 107,6 housing
- PCB terminal blocks (MKDS)
- supplied in individual parts
- PCB terminal blocks with 5 mm pitch,
- conductor cross section 1.5 mm²
- Optional perfboard for soldering THT components by hand
- Connection of individual housing modules with each other by means of the optional HBUS via DIN rail
- material Polycarbonate
- Colour: Light Grey
- Ambient temperature (operation) -40 °C ... 105 °C
- Weight: 172.500 g
- Country of origin Germany
- Length 89.7 mm
- Constructional height 62.2 mm
- Width 107.6 mm
