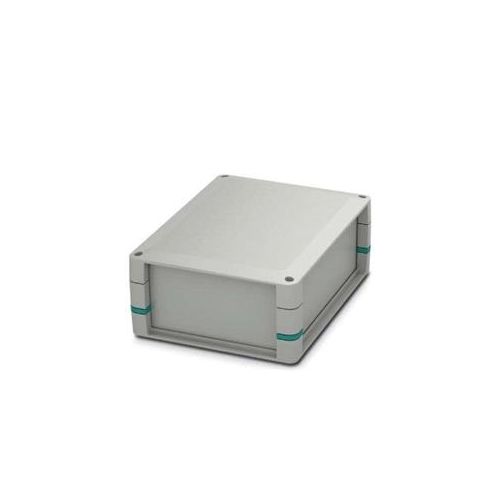

2203344 | UCS 237-195-H-GD 7035 | Complete housing for PCBs
Complete housing for PCBs, includes housing half shells, side panels closed
| Complete Electronics Part No. | 2203344 |
|---|---|
| Manufacturers Part No. | 2203344 |
| Material / Type | Polycarbonate |
| Enclosure Shape: | Rectangular |
| Enclosure Width: | 201mm to 250mm |
| Enclosure Height: | 151mm to 200mm |
| Housing Selection: | PCB Housing |
Description
2203344 | UCS 237-195-H-GD 7035
Complete housing for PCBs
- includes housing half shells
- side panels closed
- adhesive domes for PCB attachment
- screws for housing and PCB attachment
- Grey with turquoise-green corner inlay
- Housing material: Polycarbonate (PC)
- Operating temperature: -40°C ... 100°C (depending on power dissipation)
- Width: 237mm
- Height: 195mm
- Depth: 67mm
- Weight: 500.870g
- Country of Origin: Germany
