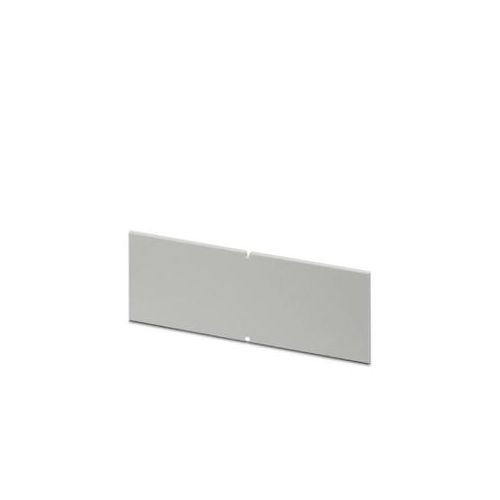

2203372 | UCS SW 145-F 7035 | Polycarbonate Side Panel
Polycarbonate Side Panel, For use with housing half shells 195 x 145 mm and 145 x 125 mm, panel thickness: 2 mm
| Complete Electronics Part No. | 2203372 |
|---|---|
| Manufacturers Part No. | 2203372 |
| Material / Type | Polycarbonate |
| Enclosure Shape: | Rectangular |
| Enclosure Width: | 101mm to 150mm |
| Enclosure Height: | Up to 50mm |
| Housing Selection: | Side Panel |
Description
2203372 | UCS SW 145-F 7035
Polycarbonate Side Panel
- For use with housing half shells 195 x 145 mm and 145 x 125 mm
- panel thickness: 2 mm
- material: polycarbonate
- colour: light grey similar to RAL 7035
- Width: 116mm
- Height: 39.5mm
- Depth: 2mm
- Operating temperature: -40°C ... 100°C (depending on power dissipation)
- Weight: 11.070g
- Country of Origin: Germany
