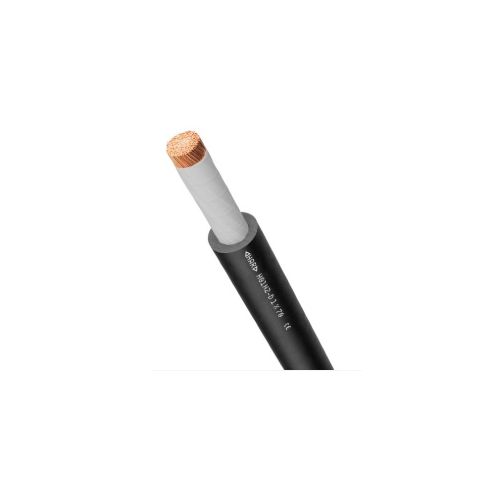

2210703 | H01N2-D 1X50 | Arc Welding Cable
Normative rubber arc-welding cable, For use on handheld electrode holder, No. of Conductors: 1, Conductor Diameter: 50.0mm², harmonised European type H01N2-D
| Complete Electronics Part No. | 2210703 |
|---|---|
| Manufacturers Part No. | 2210703 |
| Series: | H01N2 D |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 50mm² |
| Rated Voltage: | 100V |
| Cable Type: | Rubber Arc Welding Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | Rubber compound, type EM5 |
| Cable Length: | 50 Metres |
Description
2210703 | ÖLFLEX® H01N2-D 1X50
Rubber Single Core Non Shielded Power and Control Cable
Number of Conductors: 1
Conductor Diameter: 50.0mm²
Cable Outer Diameter: 13.2 - 16.5mm
Without Protective Conductor
Conductor material: Bare Copper
Conductor design: EN 50525-2-81 H01N2-D
Core insulation: Rubber
Outer Sheath material: Rubber
Outer Sheath colour: Black
Conductor design: EN 50525-2-81 H01N2-D
Core insulation: Rubber
Outer Sheath material: Rubber
Outer Sheath colour: Black
Nominal voltage: U0/U: 100/100 V AC rms according to IEC
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.0801 Ω/km
Temperature, fixed installation: -40°C to 85°C
Temperature, occasionally moved: -25 °C to 85°C
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.0801 Ω/km
Temperature, fixed installation: -40°C to 85°C
Temperature, occasionally moved: -25 °C to 85°C
Chemical resistant - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - Yes
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - Yes acc. to EN 50525-1
Weather resistant: - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - Yes
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - Yes acc. to EN 50525-1
Weather resistant: - Yes
Made according to harmonised European type H01N2-D, with the ◁HAR▷ testing mark
◁HAR▷-style cables are widely accepted and can be used in Europe
Can be used in dry, damp and, especially, harsh and oily environments
Withstands high mechanical stress
Reliable transmission of high currents
◁HAR▷-style cables are widely accepted and can be used in Europe
Can be used in dry, damp and, especially, harsh and oily environments
Withstands high mechanical stress
Reliable transmission of high currents
For connecting an arc welding device and manual electrode holder up to a nominal voltage of 100 V
For flexible use, in the open air, without tensile strain
Not suitable for torsional loads
Can be used for a limited period of time outdoors
Flexible use at temperatures down to -25°C
CE marked, EAC certified, HAR certified - EN 50525-2-81
For flexible use, in the open air, without tensile strain
Not suitable for torsional loads
Can be used for a limited period of time outdoors
Flexible use at temperatures down to -25°C
CE marked, EAC certified, HAR certified - EN 50525-2-81
Reel Length= 50M
Lapp part number: 2210703
