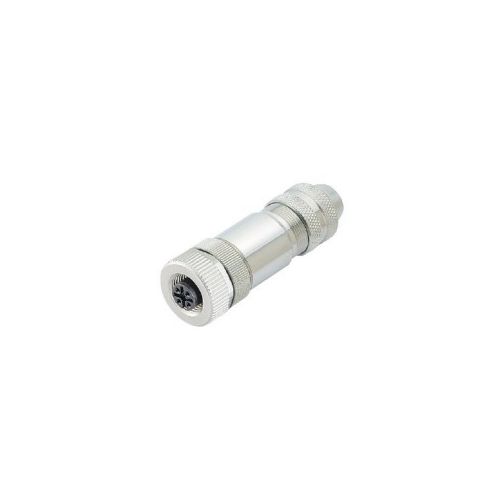

22260136 | AB-C5-M12FS-PG9-SH | Lapp Cable
Field mountable M12 BUS-connector, M12 Socket, 5-pins, A Coded, Screw Connection. Without cable gland, rated voltage 60 V DC according to IEC
| Complete Electronics Part No. | 22260136 |
|---|---|
| Manufacturers Part No. | 22260136 |
| Type: | Connector |
Description
Sensor/Actuator connector, M12 A-coded socket
Mechanical characteristics
22260136 / AB-C5-M12FS-PG9-SH
Sensor/Actuator connector, M12 A-coded socket
Description
Data connector, without cable gland
Weight 0.049 kg
M12, 5 pins, A-coded, shielded
Field configurable
Screw connection
General characteristics
Ambient Temperature (operation): -40° to +85°C
Protection class IP 67
Number of pins 5
Coding A – standard
Thread size M12
A coded
Status indicator No
Mechanical characteristics
Contact, material Brass (CuZn)
Contact surface, material gold plated (Au)
Contact carrier, material PA 66
Knurl, material Nickel plated brass
Seal, material, Acrylonitrile butadiene rubber
Colour housing: Metal
Min. connectable conductor cross section fine-wire 0.25 mm²
Max. connectable conductor cross-section fine-wire 0.75 mm²
Total length 57 mm
For cable outer diameter min. 6 mm
For max. cable outer diameter 8 mm
Screw connection, metal knurl, cable screw connection Pg9
Locking type: Screw lock
Electrical characteristics
Rated voltage 60 V DC according to IEC
Rated current (at 40 °C) 4 A according to IEC
Overvoltage category II
Pollution degree 3
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Standard
Product standard M12-socket according to IEC 61076-2-101Lapp part number: 22260136
