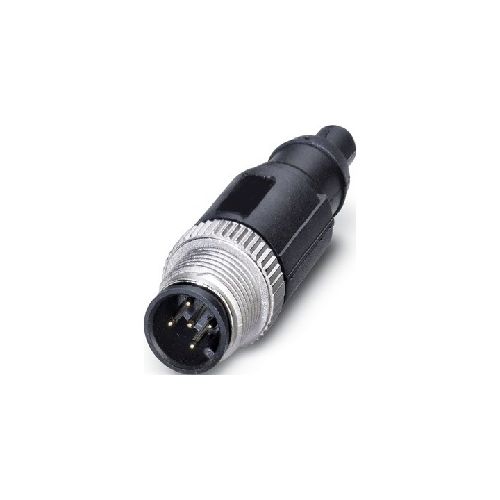

22260766 | AB-C5-M12MS-DN-TR | Lapp Cable
M12 Terminating resistor for DeviceNet/CANopen, Extremely robust M12 bus termination, Number of pins 5, A coding not shielded
| Complete Electronics Part No. | 22260766 |
|---|---|
| Manufacturers Part No. | 22260766 |
| Type: | Connector |
Description
Mechanical characteristics
22260766 / AB-C5-M12MS-DN-TR
Terminating resistor; CAN, DeviceNet; M 12; Plug
Description
Data connector, without cable gland
Weight 0.008 kg
M12, 5 pins, A-coded, not shielded
Locking type: Screw Thread
Field configurable
Screw connection
General characteristics
Ambient Temperature (operation): -25° to +90°C
Protection class IP 65 / 67
Number of pins 5
Coding A – standard
Thread size M12
A coded
Status indicator No
Mechanical characteristics
Contact, material: copper tin
Contact surface, material gold plated nickel (NiAu)
Contact carrier, material CuSn
Housing base material: Polyurethane
Colour housing: Black
Connector diameter: 14.8mm
Total length 56.3mm
Locking type: Screw thread
Thread size: 12mm (M12)
Electrical characteristics
Rated voltage 60 V DC according to IEC
Rated current (at 40 °C) 4 A according to IEC
Overvoltage category II
Pollution degree 3
Terminating resistor 120 Ω
Lapp part number: 22260766
