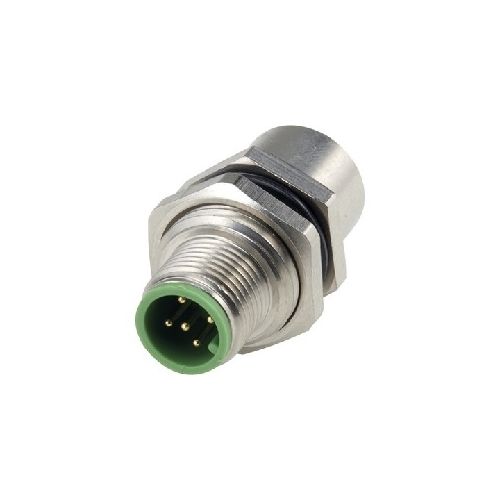

22262020 | AB-C5-DSI-M12MS-M12FS-M16-SH | Lapp Cable
M12 control cabinet feed-through, M12 A-coded, M12 plug on M12 socket, Screened, Bipolar/screw mounting, Rated voltage 24 V
| Complete Electronics Part No. | 22262020 |
|---|---|
| Manufacturers Part No. | 22262020 |
| Type: | Connector |
Description
Mechanical characteristics
AB-C5-DSI-M12MS-M12FS-M16-SH
Sensor/Actuator control cabinet feed through
Description
Plug on jack
M12, 5 pins, A-coded, shielded
Bipolar/screw mounting
General characteristics
Ambient Temperature (operation): -25 to +85 °C (-13 to 185 °F)
Test voltage: core/core: 2000 V AC
Protection class IP 67
Number of pins 5
Coding A – standard
Status indicator No
Mechanical characteristics
Contact, material CuZn
Contact surface, material Au
Contact carrier, material PA 66
Knurl, material Nickel plated brass
Seal, material NBR
Electrical characteristics
Rated voltage 24 V
Rated current (at 40 °C) 4 A
Overvoltage category II
Pollution degree 3
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Standard
Product standard M12-plug according to IEC 61076-2-101Lapp part number: 22262020
