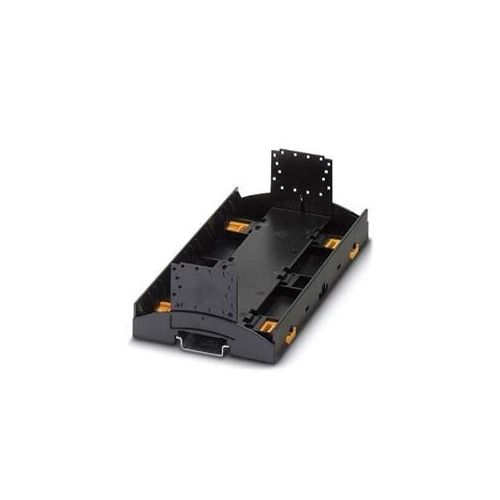

2278500 | BC 161,6 UT HBUS BK | Component housing with vents
Component housing with vents, Lower part, Cross connection: DIN rail bus connector, Colour: black
| Complete Electronics Part No. | 2278500 |
|---|---|
| Manufacturers Part No. | 2278500 |
| Material / Type | Polycarbonate |
| Enclosure Shape: | Rectangular |
| Enclosure Length: | 51mm to 100mm |
| Enclosure Width: | 151mm to 200mm |
| Enclosure Height: | 51 to 100mm |
| Housing Selection: | Component Housing |
Description
2278500 | BC 161,6 UT HBUS BK
Component housing with vents
- Lower part
- Cross connection: DIN rail bus connector
- Colour: black
- width: 161.6 mm
- length: 89.7 mm
- height: 62.2 mm
- Depth: 89.7mm
- number of positions cross connector: 16
- Ambient temperature (operation) -40 °C ... 105 °C (depending on power dissipation)
- Housing material: Polycarbonate
- Weight: 82.580g
- Country of Origin: Germany
