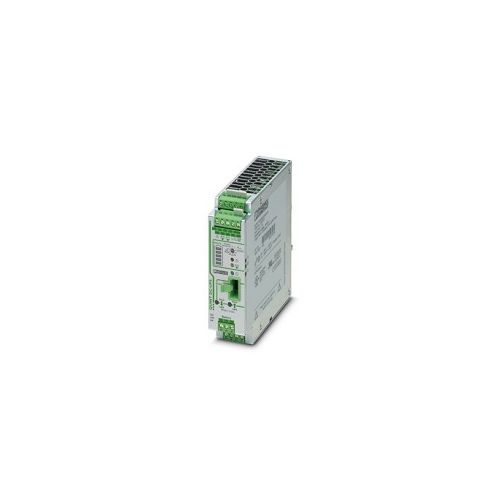

2320212 | QUINT-UPS/ 24DC/ 24DC/5 | UPS

Uninterruptible power supply with IQ technology for DIN rail mounting, input: 24 V DC, output: 24 V DC / 5 A, including mounted DIN rail adapter UTA 107/30

More Information
Complete Electronics Part No.	2320212
Manufacturers Part No.	2320212
Phoenix Ethernet Series:	Quint UPS
Input Voltage:	24 V DC
Operating Voltage:	DC 24 V
Output Type:	5 A

Description

QUINT-UPS/ 24DC/ 24DC/5

Uninterruptible Power Supply

Input Data

Input voltage: 24 V DC

Input voltage range: 18 V DC ... 30 V DC

Output Data (Mains Operation)

Nominal output voltage: 24 V DC

Output voltage range 18 V DC ... 30 V DC

Nominal output current: 5 A

Power Boost: 7.5A

Selective Fuse Breaking: 30 A (12 ms)

Output Data (Battery Operation)

Nominal output voltage: 24 V DC

Output voltage range 19.2 V DC ... 27.6 V DC

Nominal output current: 5 A

Power Boost: 7.5 A

Selective Fuse Breaking: 32.5 A (15 ms)

Functionality

Automatic battery detection

Tool-free battery replacement

SFB Technology selectively trips standard miniature circuit breakers

UPS connection in series: Yes, up to 2 modules with redundancy module

UPS connection in parallel: No

IQ-Technology: Yes

Interface: IFS (Interface system data port)

Connection method: Screw connection

Degree of protection: IP20

Operating Temperature: -25°C ... 70°C

Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3

Ul approval: UL/C-UL Listed UL 60950-1 (see datasheet for complete list of approvals)

Dimensions

Width: 35 mm

Height: 130 mm

Depth: 125 mm

Mounting Type: DIN Rail

Item dimensions with alternative mounting

Width: 123 mm

Height: 130 mm

Depth: 39 mm

Commercial Data

Weight per Piece (excluding packing): 500 g

Weight per Piece (including packing): 674 g

Part Number: 2320212

GTIN: 4046356554138

Customs tariff number: 85371091

Country of Origin: IN
