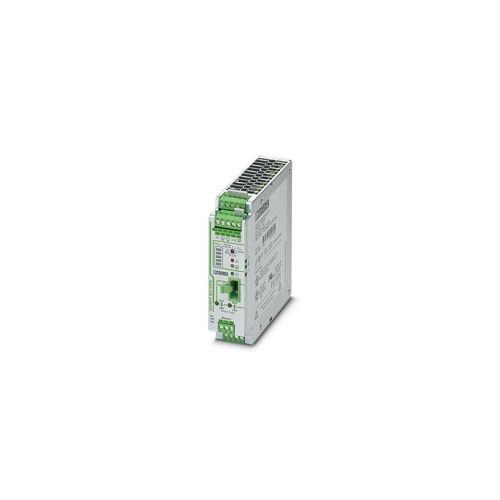

2320225 | QUINT-UPS/ 24DC/ 24DC/10 | UPS
Uninterruptible power supply with IQ technology for DIN rail mounting, input: 24 V DC, output: 24 V DC / 10 A, including mounted DIN rail adapter UTA 107/30
| Complete Electronics Part No. | 2320225 |
|---|---|
| Manufacturers Part No. | 2320225 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type | 10 A |
Description
QUINT-UPS/ 24DC/ 24DC/10
Uninterruptible Power Supply
Input Data
Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Output Data (Mains Operation)
Nominal output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 10 A
Power Boost: 15A
Selective Fuse Breaking: 60 A (12 ms)
Output Data (Battery Operation)
Nominal output voltage: 24 V DC
Output voltage range 19.2 V DC ... 27.6 V DC
Nominal output current: 10 A
Power Boost: 15 A
Selective Fuse Breaking: 65 A (15 ms)
Functionality
Automatic battery detection
Tool-free battery replacement
SFB Technology selectively trips standard miniature circuit breakers
UPS connection in series: Yes, up to 2 modules with redundancy module
UPS connection in parallel: No
IQ-Technology: Yes
Interface: IFS (Interface system data port)
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C
Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3
Ul approval: UL/C-UL Listed UL 60950-1 (see datasheet for complete list of approvals)
Dimensions
Width: 35 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail
Item dimensions with alternative mounting
Width: 123 mm
Height: 130 mm
Depth: 30 mm
Commercial Data
Weight per Piece (excluding packing): 513 g
Weight per Piece (including packing): 702.8 g
Part Number: 2320225
GTIN: 4046356554206
Customs tariff number: 85371091
Country of Origin: IN
