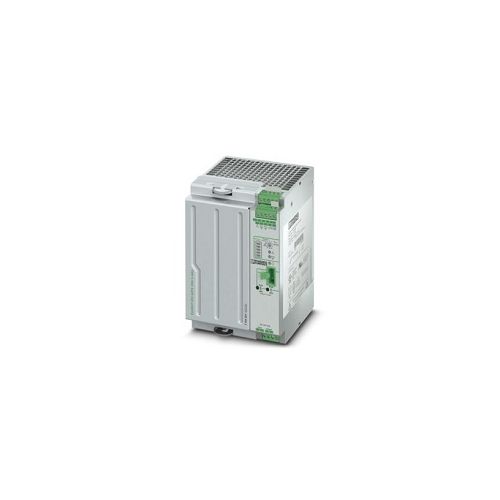

2320267 | QUINT-UPS/ 24DC/ 24DC/10/3.4AH | UPS
Uninterruptible power supply with IQ Technology and integrated battery for DIN rail mounting, input: 24 V DC, output: 24 V DC/10 A, battery: lead AGM 4 Ah
| Complete Electronics Part No. | 2320267 |
|---|---|
| Manufacturers Part No. | 2320267 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage: | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type: | 4 Ah |
Description
QUINT-UPS/ 24DC/ 24DC/10/3.4AH
Uninterruptible Power Supply
Input Data
Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Buffer period 180 min. (1 A), 10 min. (10 A)
Output Data (Mains Operation)
Nominal output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 10 A (0 °C ... 40 °C)
Power Boost: 15 A (0 °C ... 40 °C)
Selective Fuse Breaking: 60 A (0 °C ... 40 °C)
Output Data (Battery Operation)
Nominal Output Voltage: 24 V DC
Output voltage range: 19.2 V DC ... 27.6 V DC
Nominal output current: 10A
POWER BOOST: 15 A (0 °C ... 40 °C)
Selective Fuse Breaking (ISFB) 65 A (0 °C ... 40 °C)
Functionality
Battery technology: VRLA-AGM
2x BB Battery HR4.2-12FR (from UPS V/C-level 06)
IQ technology
Temperature sensor
Network management
UPS connection in parallel: 2
UPS connection in series: No
Connection method: Screw connection
Interface: IFS (Interface system data port)
Degree of protection: IP20
Operating Temperature: -20°C ... 40°C
Ul approval: UL/C-UL Recognized UL 60950-1, UL Listed UL 508
Dimensions
Width: 20 mm
Height: 169 mm
Depth: 125 mm
Mounting Type: DIN Rail
Commercial Data
Weight per Piece (excluding packing): 4114 g
Weight per Piece (including packing): 4590 g
Part Number: 2320267
GTIN: 4046356554183
Customs tariff number: 85371091
Country of Origin: CN
