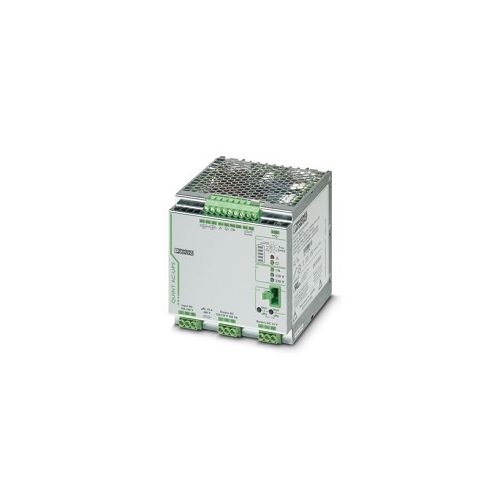

2320270 | QUINT-UPS/ 1AC/ 1AC/500VA | UPS
Uninterruptible power supply with IQ technology 1AC/1AC/500 VA. For 120 V AC / 230 V AC applications, monitors charge state, remaining runtime and service life
| Complete Electronics Part No. | 2320270 |
|---|---|
| Manufacturers Part No. | 2320270 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage | AC 100V to 240V |
| Operating Voltage: | AC 110 - 230V |
| Output Type | 500 VA |
Description
QUINT-UPS/ 1AC / 1AC/500VA
Uninterruptible Power Supply
Input Data
Input voltage: 120 V AC / 230 V AC
Input voltage range: 96 V AC ... 264 V AC
Device mains fuse: 10 A
Permissible backup fuse max. B16 230 V AC, 20 A 120 V AC, Listed breaker
Nominal Frequency range 45 Hz ... 65 Hz
Output Data (Mains Operation)
Nominal output voltage: 120 V AC / 230 V AC
Nominal output current: 4.3 A (120 V AC) / 2.2 A (230 V AC)
Power Boost: 5.2 A (120 V AC) / 2.7 A (230 V AC)
Connection in parallel: No
Connection in series: No
Output Data (Battery Operation)
Nominal output voltage: 120 V AC / 230 V AC
Nominal output current: 4.3 A (120 V AC) / 2.2 A (230 V AC)
Power Boost: 5.2 A (120 V AC) / 2.7 A (230 V AC)
Nominal output frequency: 60 Hz / 50 Hz
Form of output voltage: Pure sine
Functionality
Battery technology: VRLA, VRLA-WTR, LI-ION
Number of interfaces: 1
Interface: IFS (Interface system data port)
Connection method MINI-USB Type B
Transmission physics: USB 2.0
Maximum cable length: 3 m
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -20°C ... 70°C (> 50 °C Derating: 2,5 %/K)
Housing materials: Metal
UL/C-UL Recognized UL 1778
Dimensions
Width: 125 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail
Commercial Data
Weight per Piece (excluding packing): 2244 g
Weight per Piece (including packing): 2510 g
Part Number: 2320270
GTIN: 4046356560078
Customs tariff number: 85371091
Country of Origin: DE
