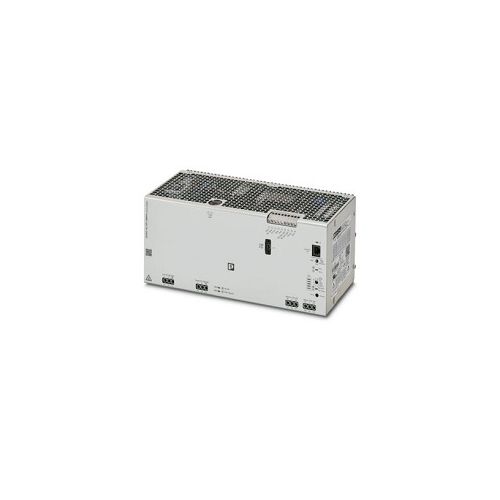

2320283 | QUINT4-UPS/1AC/1AC/1KVA | UPS

Uninterruptible power supply with IQ technology for DIN rail mounting. Input: 120/230 V AC,output: 120/230 V AC/1 kVA.

More Information
Complete Electronics Part No. 2320283
Manufacturers Part No. 2320283
Phoenix Ethernet Series: Quint UPS
Input Voltage AC 100V to 240V
Operating Voltage: AC 110 - 230V
Output Type 1 kVA
Description

QUINT4-UPS/1AC/1AC/1KVA

Uninterruptible Power Supply

Input Data

Input voltage: 120 V AC....230 V AC
Nominal Output Current: 8.3 A (120 V ac)   4.3 A (230 V AC)
Power Boost: 13 A, 7 A

Output Data (Mains Operation)

Nominal output voltage: 120 V AC ±2 %...230 V AC ±2 %
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 8.3 A (120 V ac)   4.3 A (230 V AC)
Power Boost: 13 A (120 V AC)...7 A (230 V AC)

Output Data (Battery Operation)

Nominal output voltage: 120 V AC ±2 %...230 V AC ±2 %
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 8.3 A (120 V ac)   4.3 A (230 V AC)
Power Boost: 13 A (120 V AC)...7 A (230 V AC)

Functionality

Signal: AC OK: Output voltage 24 V
Signal: Alarm Output voltage 24 V
Signal: Battery mode: Output voltage 24 V
Signal: Ready: Output voltage 24 V
Signal: P>Pn: Output voltage 24 V (SELV)
Interface MINI-USB type B
Permissible backup fuse 50 A / > 58 V
IQ-Technology: Yes
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -25°C ... 60°C
Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3
UL/C-UL Recognized UL 1778

Dimensions

Width: 290 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail

Commercial Data

Weight per Piece (excluding packing): 5151 g
Weight per Piece (including packing): 5630 g
Part Number: 2320283
GTIN: 4055626244563
Customs tariff number: 85371091
Country of Origin: DE
