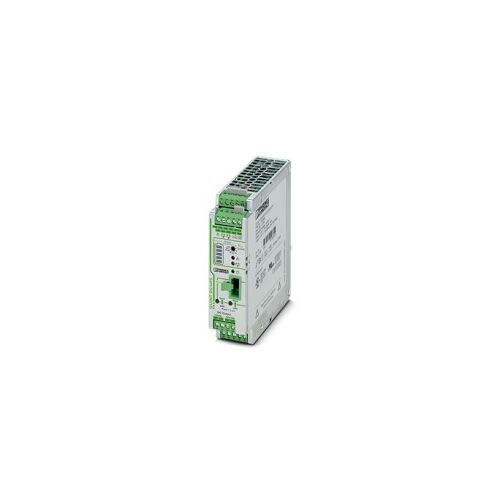

QUINT-UPS/ 24DC/12DC/5/24DC/10
Uninterruptible Power Supply
Input Data
Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Buffer period 3 h (With battery module 38 AH)
Recommended breaker for input protection 16 A ... 20 A (Characteristic B)
Output Data (Mains Operation)
Nominal output voltage: 24 V DC & 12 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 10 A & 5 A
Power Boost: 15 A & 7.5 A
Selective Fuse Breaking 60 A (-25 °C ... 60 °C)
Output Data (Battery Operation)
Nominal output voltage: 24 V DC & 12 V DC
Output voltage range 19.2 V DC ... 27.6 V DC
Nominal output current: 10 A & 5 A
Power Boost: 15 A & 7.5 A
Selective Fuse Breaking 60 A (-25 °C ... 60 °C)
Functionality
One UPS module - two voltages
Including mounted universal DIN rail adapter UTA 107/30
Fast tripping of standard circuit breakers with SFB (selective fuse breaking)
Tool-free battery replacement during operation
SFB Technology selectively trips standard miniature circuit breakers
Communication via the IFS interface
No-load proof: Yes
Connection in parallel: Yes
Connection in series: No
Battery technology: VRLA-AGM
Screw Connection
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C
Housing materials: Metal / Steel sheet/ galv sheet steel
Ul approval: UL/C-UL Recognized UL 60950-1
Dimensions
Width: 35 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail
Alternative assembly dimensions
Width: 123 mm
Height: 130 mm
Depth: 39 mm
Commercial Data
Weight per Piece (excluding packing): 600g
Weight per Piece (including packing): 735 g
Part Number: 2320461
GTIN: 4046356731515
Customs tariff number: 85371091
Country of Origin: CN
