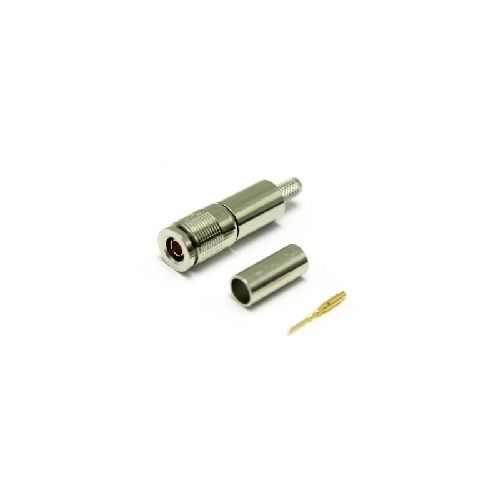

24-005-B6-BD | 24005B6BD | Type 54 P54/5B Straight Crimp Plug
Type 54 straight full crimp plug, Centre contact and crimp sleeve are annealed, Suitable for use with BT 3002 and similar cable in group BD.
| Complete Electronics Part No. | 24005B6BD |
|---|---|
| Manufacturers Part No. | 24-005-B6-BD |
| Type | Attenuator |
| Impedance | 75 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage:
- Insulation Resistance:
Mechanical Specification
- Design Standard: BT RC9333
- RoHS3 Compliant:
- Cable Retention: 150N min
- Weight: 6.50g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Beryllium Copper
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 25
