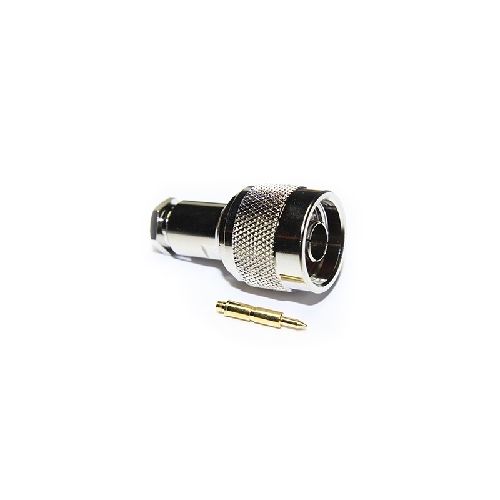

25-001-B6-AI | 25001B6AI | N Type Solder / Clamp Plug
N Type 75 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. For use with RG59 and similar cables in group AI
| Complete Electronics Part No. | 25001B6AI |
|---|---|
| Manufacturers Part No. | 25-001-B6-AI |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Centre Contact Termiination: Solder
- Outer Contact Termination: Clamp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 220N min
- Weight: 71.1g
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Recommended Coupling Nut Torque: 170Ncm Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP68
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Screw Coupling Nut: Brass
- Gasket: Silicone
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
