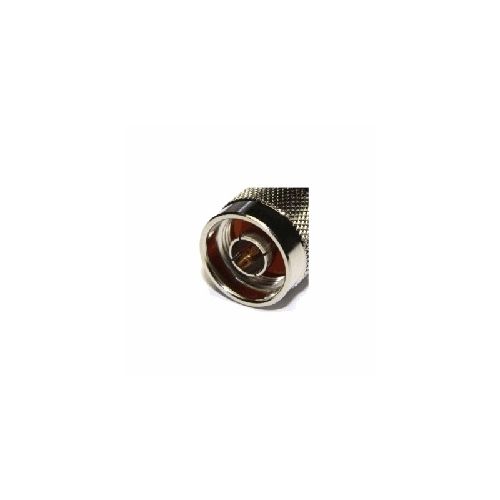

25-001 Times LMR®1200 | 25001 | Easy Fit/Top Hat Clamp Plug

N Type 50 ohm straight plug. With Easy Fit termination, No specialised tooling required, For use with Times LMR®1200 and cables in group DJ
More Information
Complete Electronics Part No. 25001
Manufacturers Part No. 25-001 Times LMR®1200
Type Straight
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Easy Fit
  • Outer Contact Termination: Clamp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 220N min
  • Weight:
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Recommended Coupling Nut Torque: 170Ncm Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Screw Coupling Nut: Brass
  • Gasket: Silicone
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
