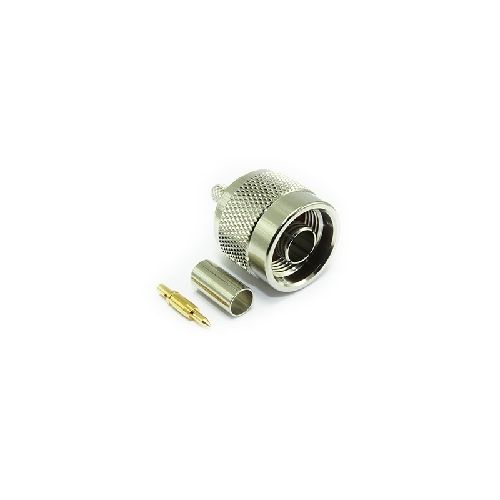

25-005-B3-AH | 25005B3AH | N Type Crimp / Crimp Plug
N Type 50 ohm full crimp straight plug, centre contact and crimp sleeve are annealed. Suitable for use with RG58 and similar cables in group AH.
| Complete Electronics Part No. | 25005B3AH |
|---|---|
| Manufacturers Part No. | 25-005-B3-AH |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Centre Contact Termiination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 100N min
- Weight: 32.0g
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Recommended Coupling Nut Torque: 170Ncm
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Screw Coupling Nut: Brass
- Gasket: Silicone
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
