25-005-B3-AK | 25005B3AK | N Type Crimp / Crimp Plug

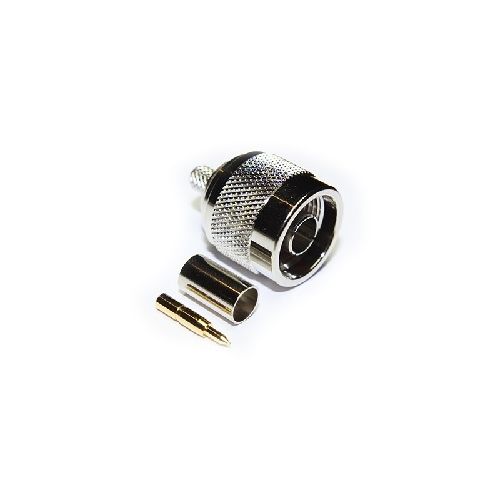

N Type 50 ohm full crimp straight plug, centre contact and crimp sleeve are annealed. Suitable for use with RG223 and similar cables in group AK.
More Information
Complete Electronics Part No. 25005B3AK
Manufacturers Part No. 25-005-B3-AK
Type Straight
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 220N min
  • Weight: 33.4g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Recommended Coupling Nut Torque: 170Ncm
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Screw Coupling Nut: Brass
  • Gasket: Silicone
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
