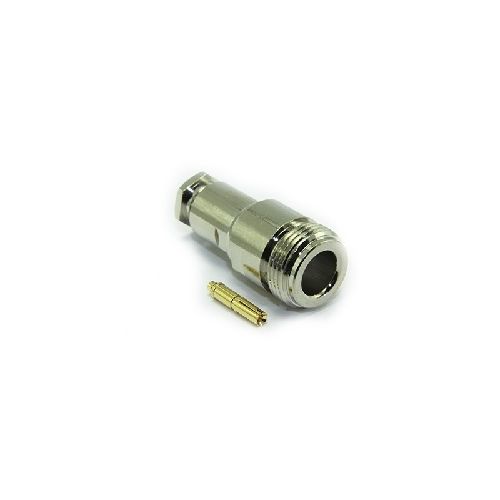

25-050-B3-AH | 25050B3AH | Solder / Top Hat Clamp Jack
N Type 50 ohm straight jack. With soldered centre contact and Top Hat clamped braid, Suitable for use with RG58 or similar cables in group AH
| Complete Electronics Part No. | 25050B3AH |
|---|---|
| Manufacturers Part No. | 25-050-B3-AH |
| Male/Female: | Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Centre Contact Termiination: Solder
- Outer Contact Termination: Clamp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 150N min
- Weight: 38.1g
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
